Workflow
A fully digital thread replaces impressions, plaster and hand waxing — every step is traceable, repeatable and fast.
Step 01
Import intraoral or model scans and design the denture, base or wax framework in CAD — then auto-nest the batch.
Step 02
16K LCD photocuring — chairside batches on the RP-200D, mass production on the RP-300D.
Step 03
The PL-A09 cleans up to 20 models per cycle, alcohol-free — 99.2% cleanliness in 21 minutes.
Step 04
Invest and cast wax patterns directly, or finish and deliver printed dentures with minimal adjustment.
Fully automatic — load, press start, done.
Ultrasonic water wash
40 kHz transducers lift uncured resin
≈ 4 min
Defatting & spin-dry
90 W spin dryer removes surface solution
≈ 5 min
First cleaning
Molecular cleaning bath, zero VOCs
≈ 4 min
Second cleaning & dry
Final rinse — 99.2% cleanliness rate
≈ 8 min
Applications
Three core restoration applications, one digital thread — from intraoral scan to finished appliance, without plaster, without hand waxing, without alcohol.

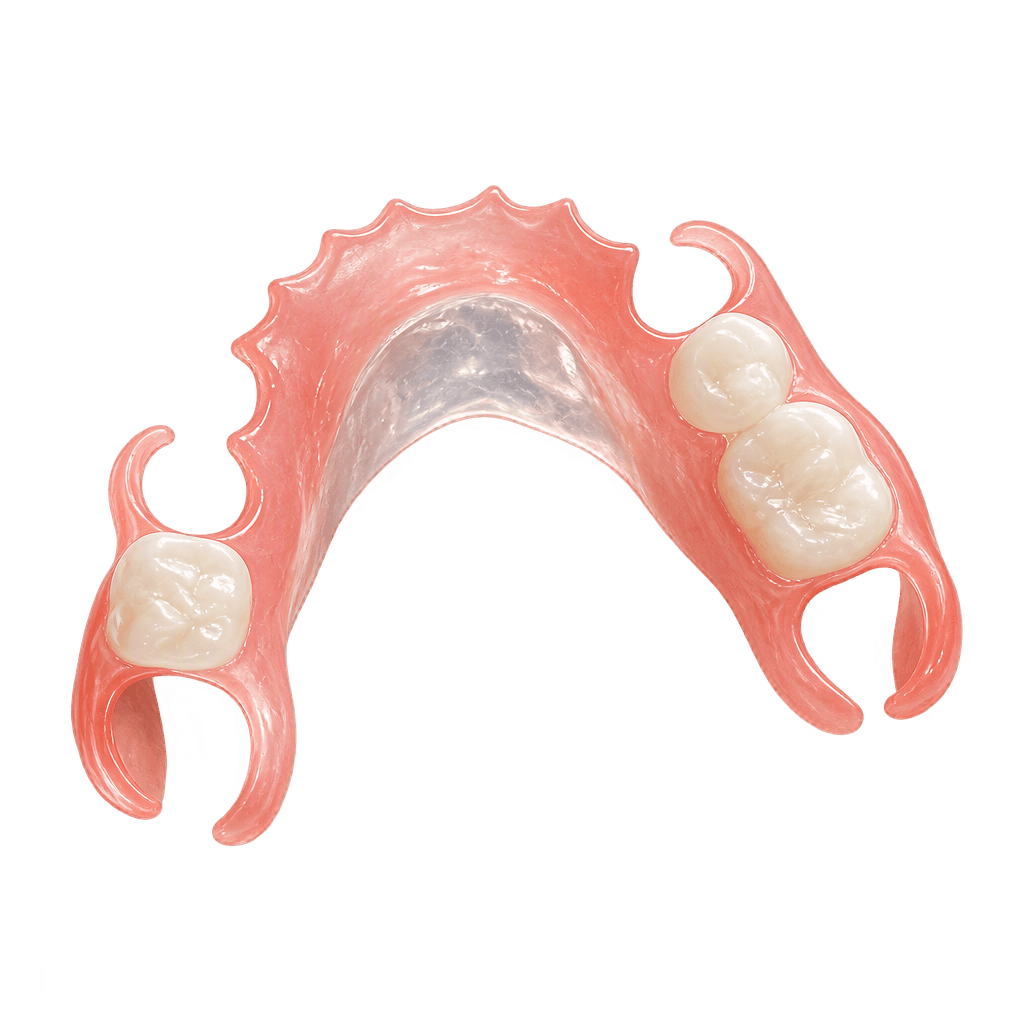

Metal-free flexible partials printed with thin-wall fidelity — comfortable, esthetic, and ready for same-day try-in.

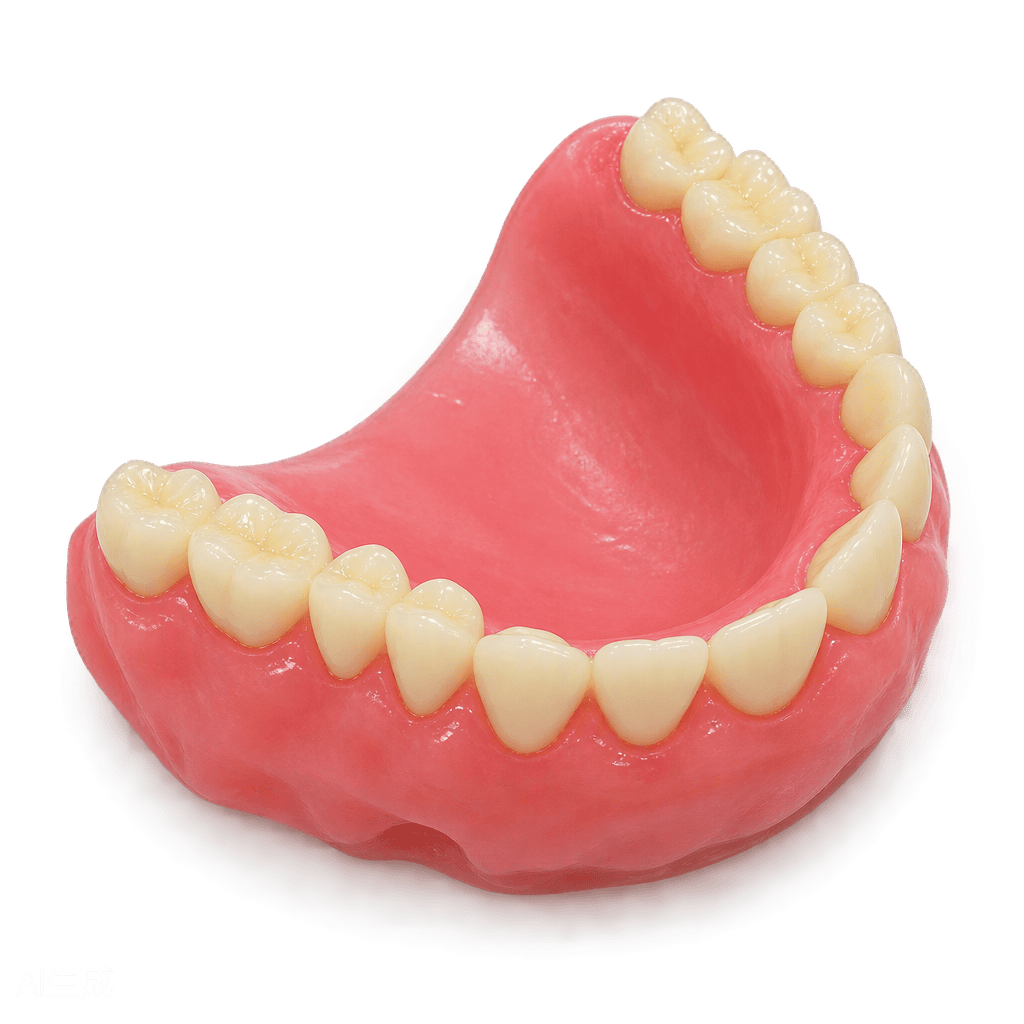

Full and partial denture bases with a precise tissue surface, printed in batches and finished with minimal chairside adjustment.

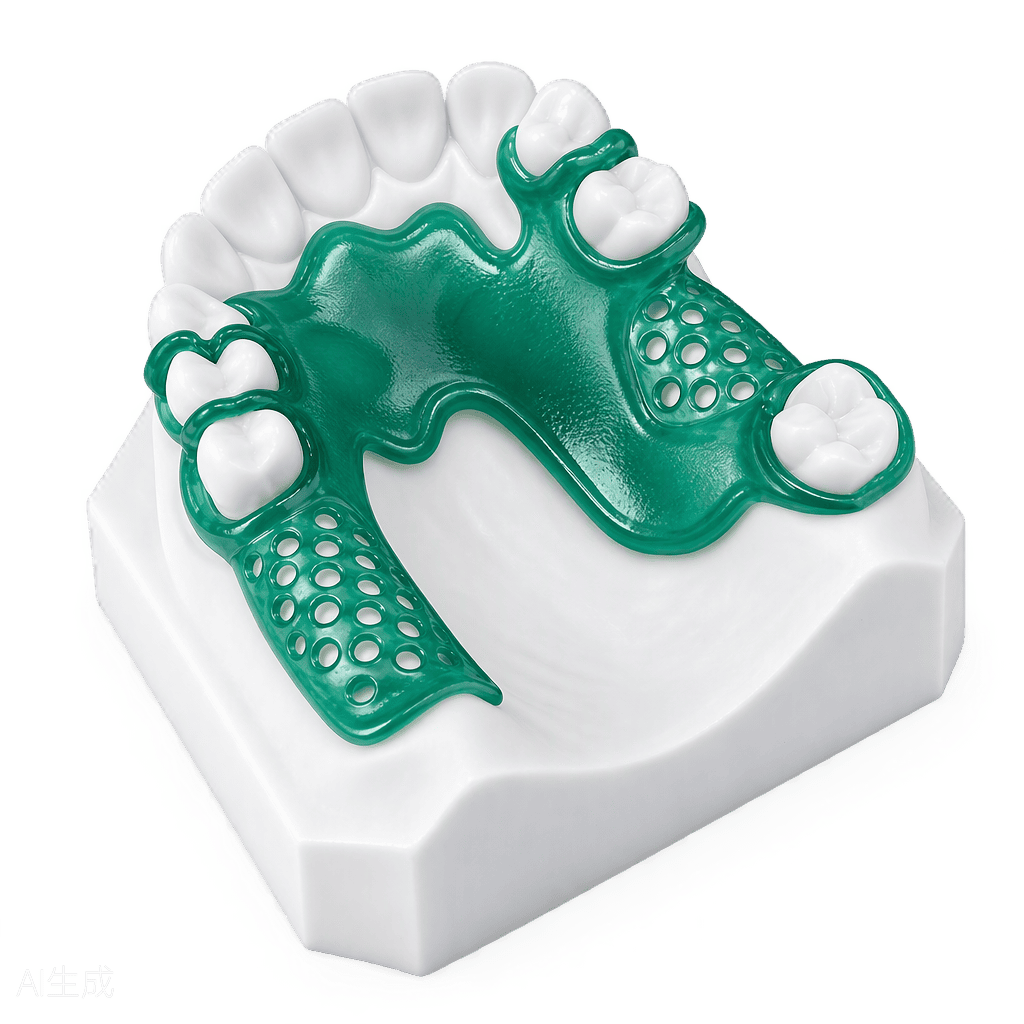

Castable patterns for frameworks and partial denture casting — sprue-ready, burnout-clean, and reproducible from the CAD file.
Equipment
Two printers for every production scale, plus the alcohol-free post-processing station that finishes the job.

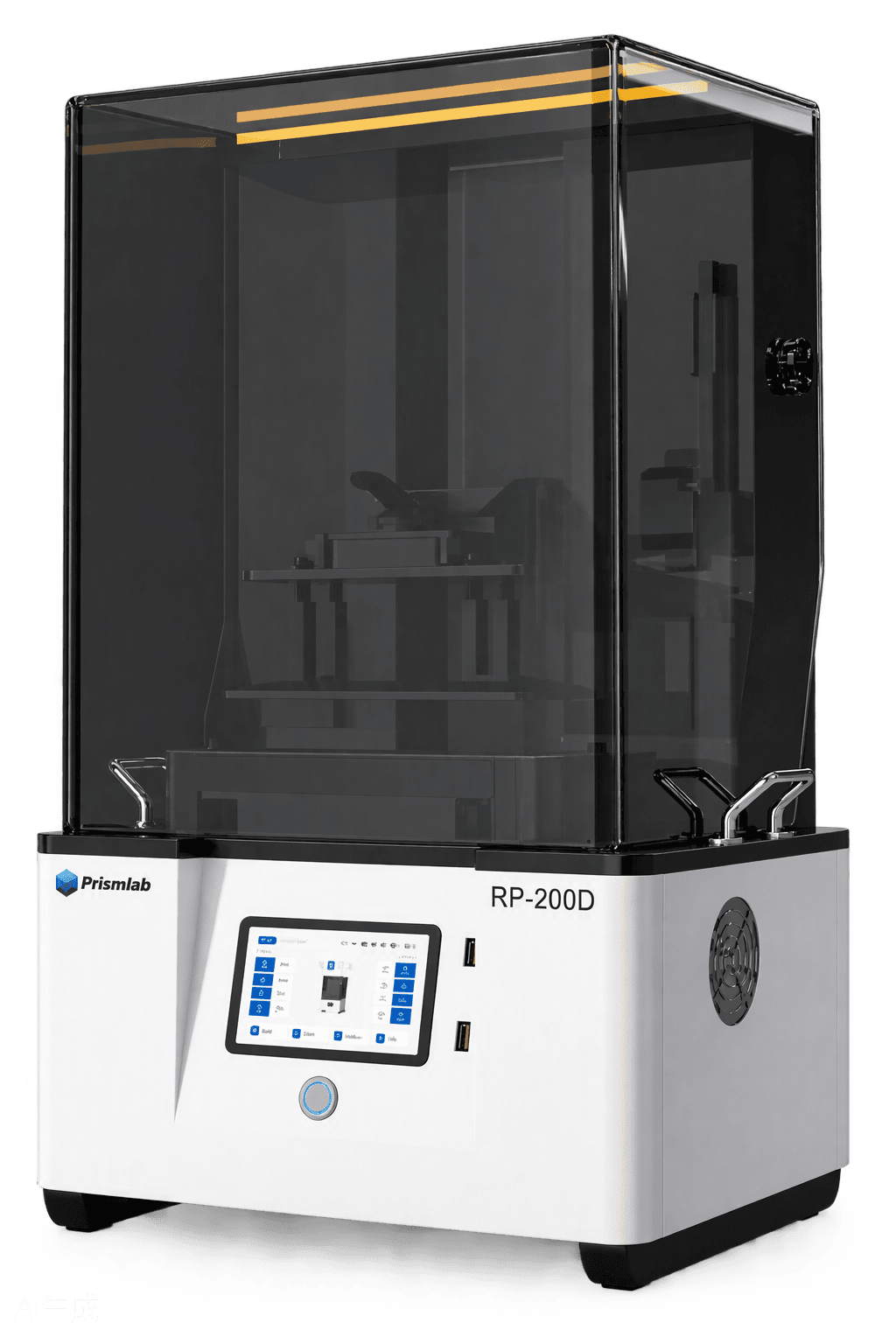

Desktop 3D Printer
A compact 16K LCD printer that brings micron-level detail to the benchtop. The RP-200D prints flexible partials, denture bases and wax patterns with the precision same-day dentistry demands — small footprint, full capability.

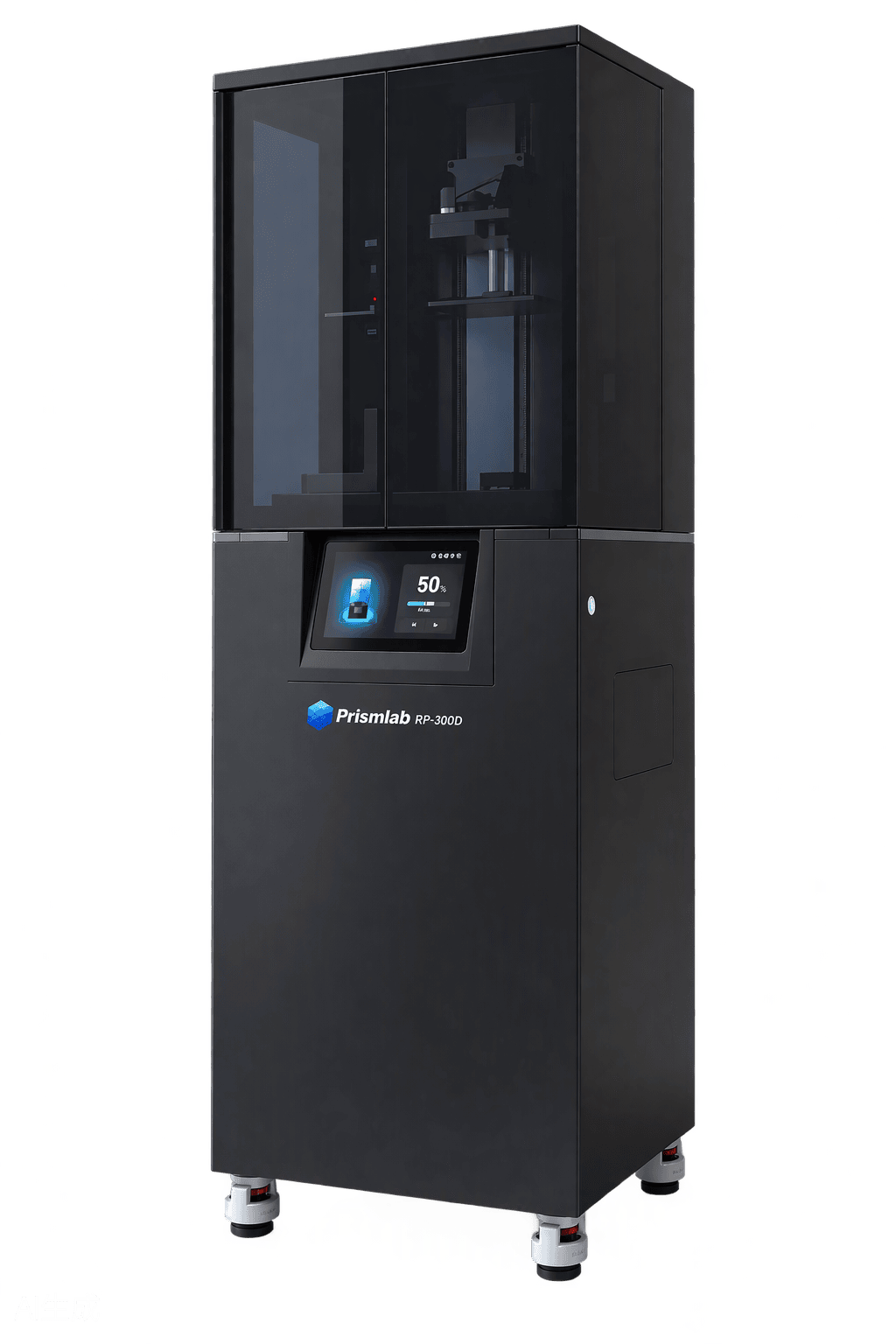

High-efficiency Intelligent 3D Printing Platform
Built for batch automated production: a large-format build volume with no part removal between jobs — print up to 24 implant models in a single batch, while multi-material compatibility covers every dental application.

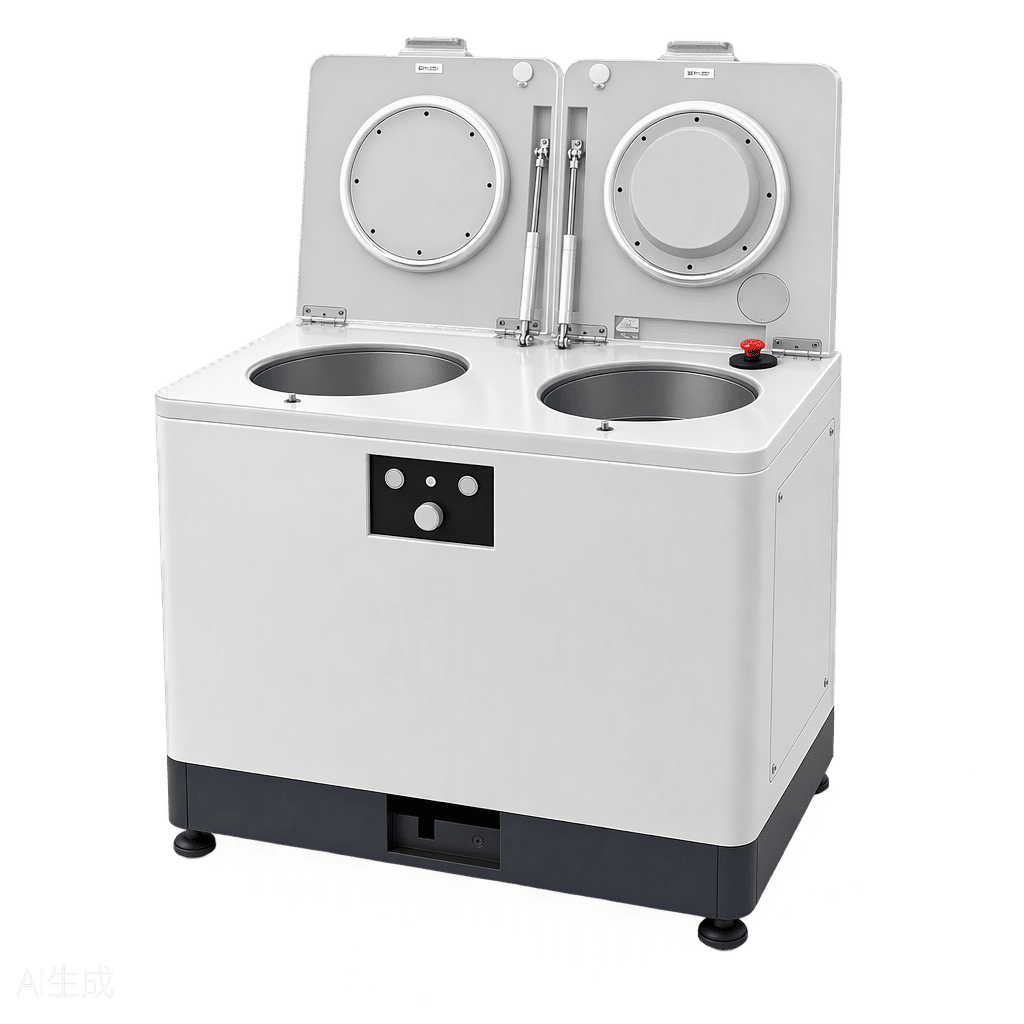

Fully Automatic Alcohol-free Dental Model Cleaning Machine
Skim, wash, done. The PL-A09 replaces flammable alcohol baths with a biologically safe, zero-VOC cleaning solution — most of which is reused — and cleans up to 20 dental models per fully automatic cycle.
Specifications
| Parameter | RP-200DDesktop 3D Printer | RP-300DFloor-standing Platform | PL-A09Alcohol-free Cleaner |
|---|---|---|---|
| Role | Chairside & lab printing | Batch automated production | Automatic post-print cleaning |
| Screen / Resolution | 10.1″ 16K · 15120 × 6230 dpi | 14″ 16K · 15120 × 6230 dpi | — |
| Pixel precision | 0.014–0.019 mm | 0.02–0.026 mm | — |
| Build volume / Capacity | 211.68 × 118.37 × 300 mm | 300 × 160 × 380 mm | 20 models · 25 L tank |
| Speed / Cycle | 10–20 mm/h · 0.025–0.1 mm layers | 10–20 mm/h · 0.025–0.1 mm layers | 21 min fully automatic cycle |
| Accuracy | 90–92% light uniformity | Z 0.02 mm · XY ±0.05 mm | 99.2% cleanliness rate |
| Dimensions | 454 × 385 × 895 mm | 530 × 438 × 1738 mm | 700 × 450 × 570 mm |
| Weight / Power | 30 kg · 600 W | 100 kg | 220 V · 2.2 kW |
| Highlights | Touchscreen · USB · dual-wavelength LED | No part removal · 24 models / batch | Alcohol-free · 80% solution reuse |
Specifications subject to the physical device; product images are for reference only.
Tell us about your lab or clinic — we'll configure the RP-200D, RP-300D and PL-A09 around your restoration workflow and materials.
