Workflow
From a single oral scan to a full series of finished aligners — every stage planned, printed, formed, marked, trimmed, polished and packed.
Step 01
Capture the patient's dentition with an intraoral scanner and import the digital model into the treatment workflow.
Step 02
Plan tooth movement stage by stage in orthodontic software, generating one model for every treatment step.
Step 03
Prismlab pre-processing nests and slices automatically; the RP-600D prints stage models in continuous batches.
Step 04
Each printed model is formed with clear film on the ACTA-E, creating the aligner shell.
Step 05
Laser-mark patient and stage codes directly on each aligner for reliable tracking.
Step 06
Trim every aligner to the designed margin with mechanical or laser cutting for a smooth edge.
Step 07
Polish the trimmed edges for a comfortable, clear finish before final inspection.
Step 08
Sort aligners by patient and treatment stage, then pack them ready for clinic delivery.
Post-processing · PL-A08
Shake-dry 3 min, cure 6 min — about 20 min per batch, 560 models/hour
Sorting · ACS-01
Vision-positioned robotic sorting into 50 patient orders in parallel, ≥ 99.9% accuracy
Thermoform & trim · ACTA-E
Auto model and film handling, thermoforming, laser marking and trimming — 100+ aligners/hour
Packaging · ACS-02
Aligners sorted and packed by treatment stage — up to 7,200 aligners per day
Applications
The printed orthodontic model is the heart of aligner manufacturing — Prismlab covers both sides of that equation.

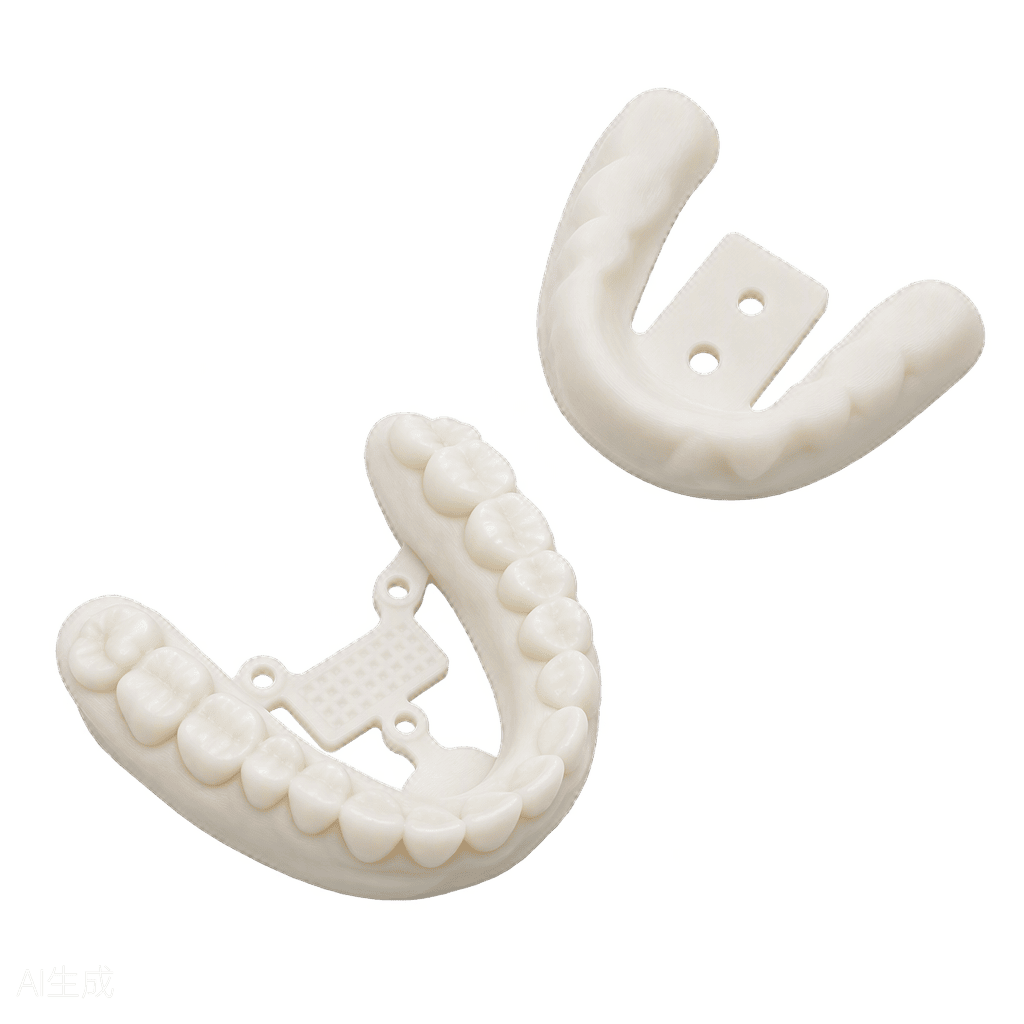

High-temp, dimensionally stable stage models for thermoforming — printed in unattended batches, one per treatment step.

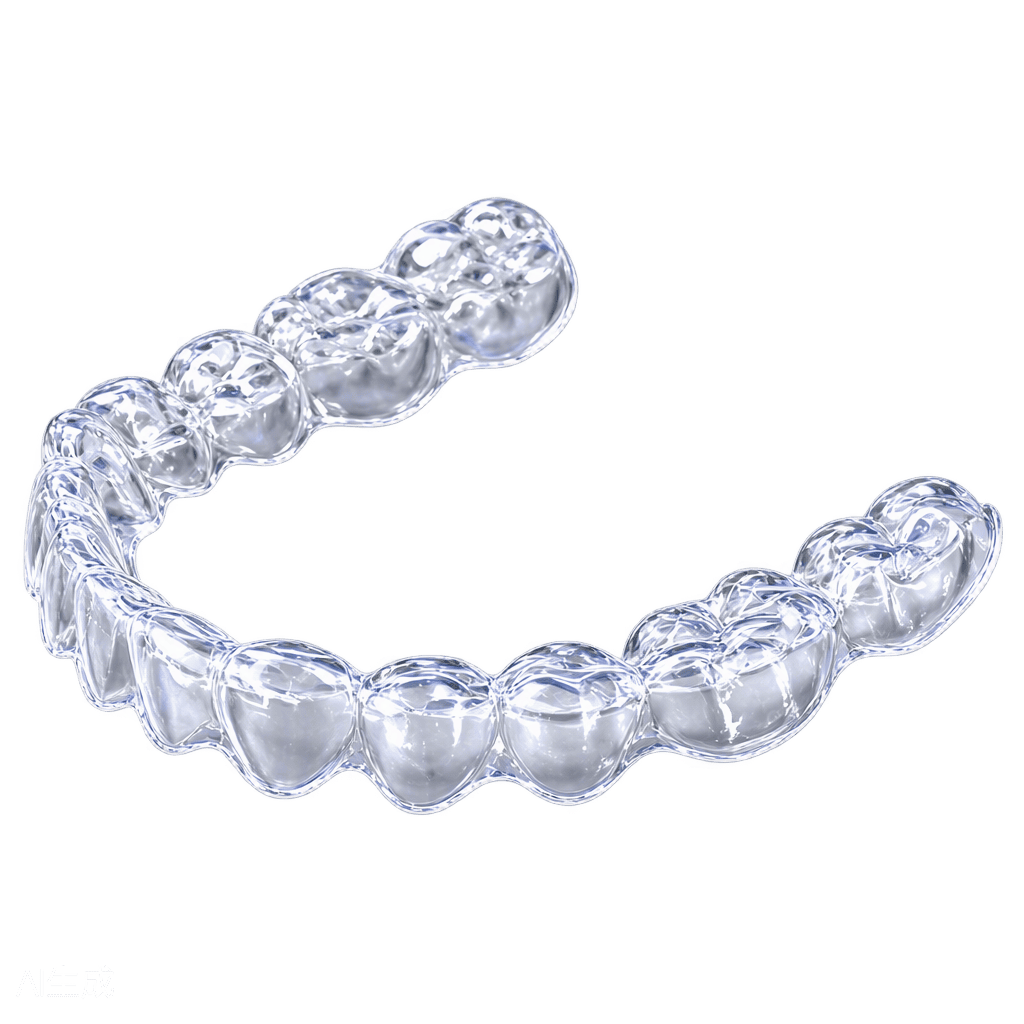

Thermoformed, laser-marked and precision-trimmed on the ACTA-E, then sorted and packed by treatment stage on the ACS-02.
RP-405-TW03W wash-free resin and its dedicated equipment enable a truly wash-free process.The dimensional change before and after lamination is minimal, ensuring high dimensional stability.

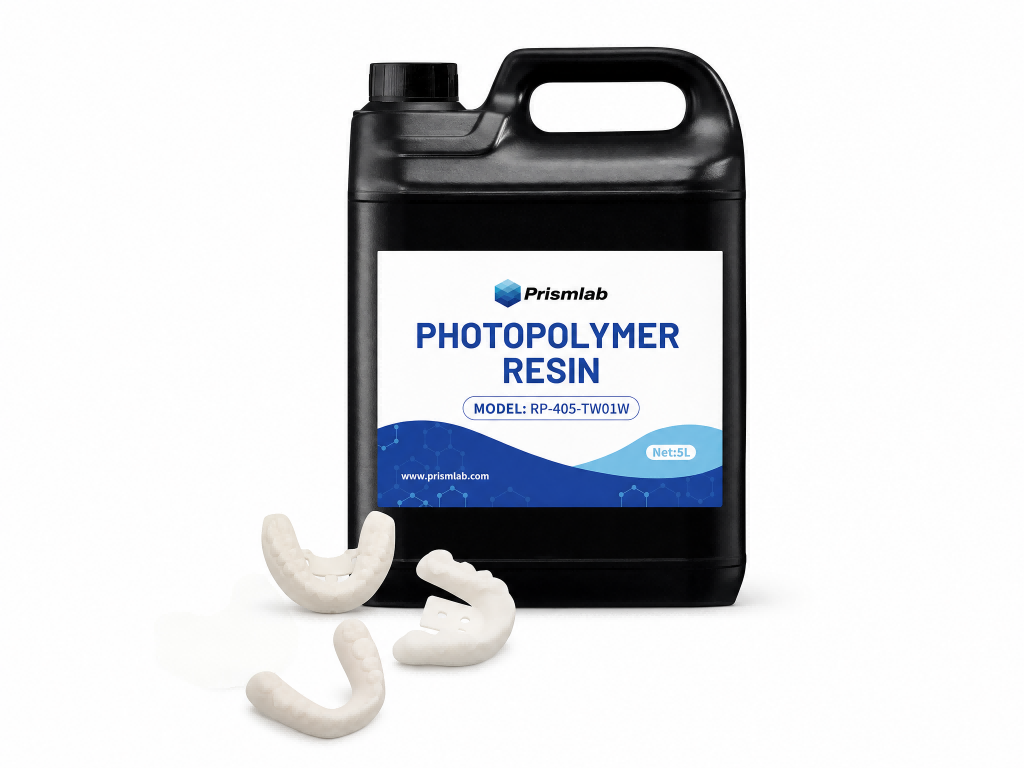

RP-405-TW01W is a water-washable resin that only requires rinsing with water to remove excess resin from the surface.High accuracy and stability.

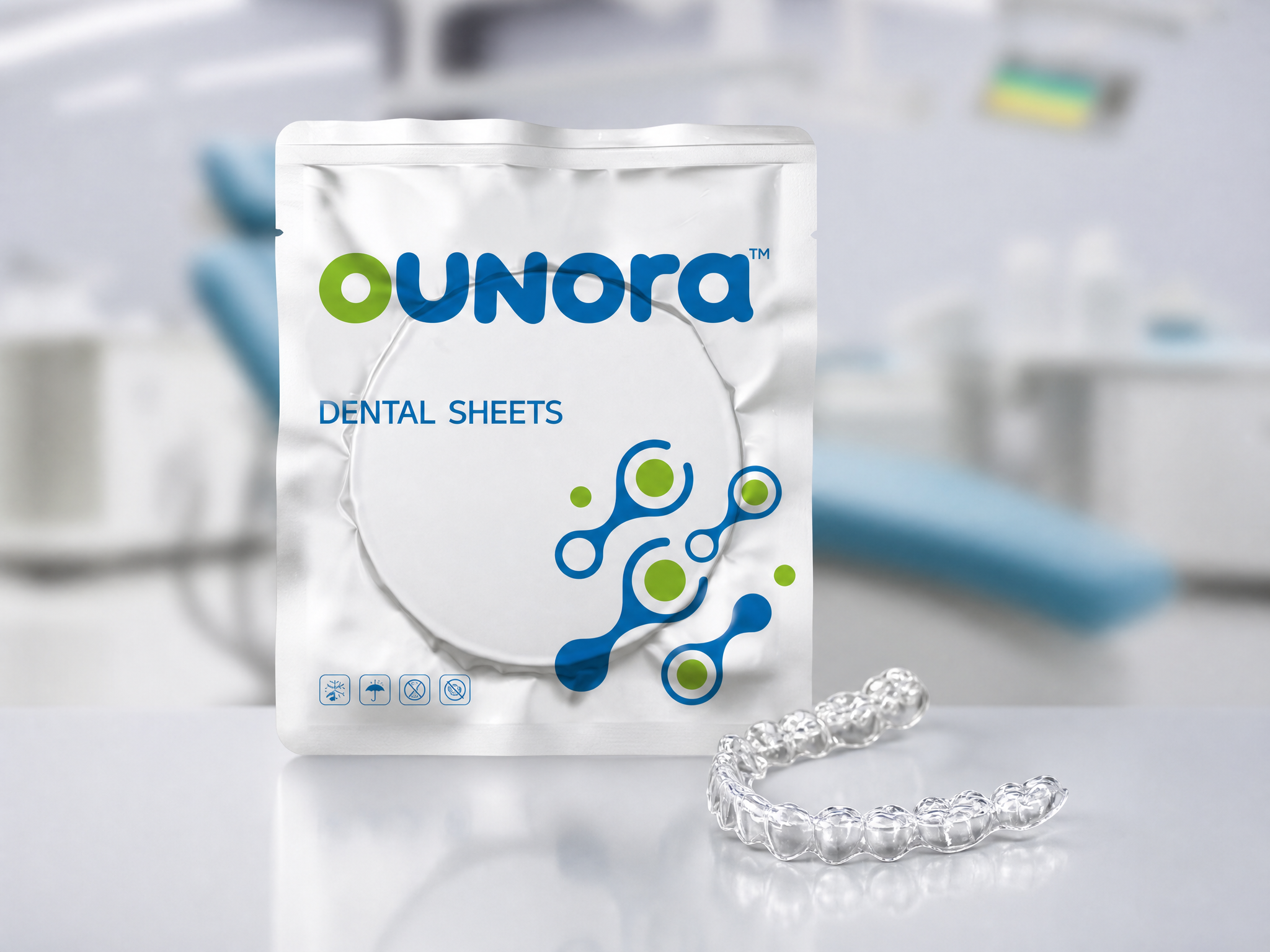

customizable thickness for diversified dental appliances:clear aligners,retainers,night guards,occlusal splints and mouthguard etc.
Equipment
Software, printing and four automation cells — one continuous line from oral scan data to packed aligners.
Intelligent Data Preparation
Patient oral scan data is processed through orthodontic planning software to generate a series of dental models representing each stage of the treatment. Prismlab's intelligent pre-processing software enables automatic model retrieval, layout, and slicing — dramatically reducing manual preparation time.

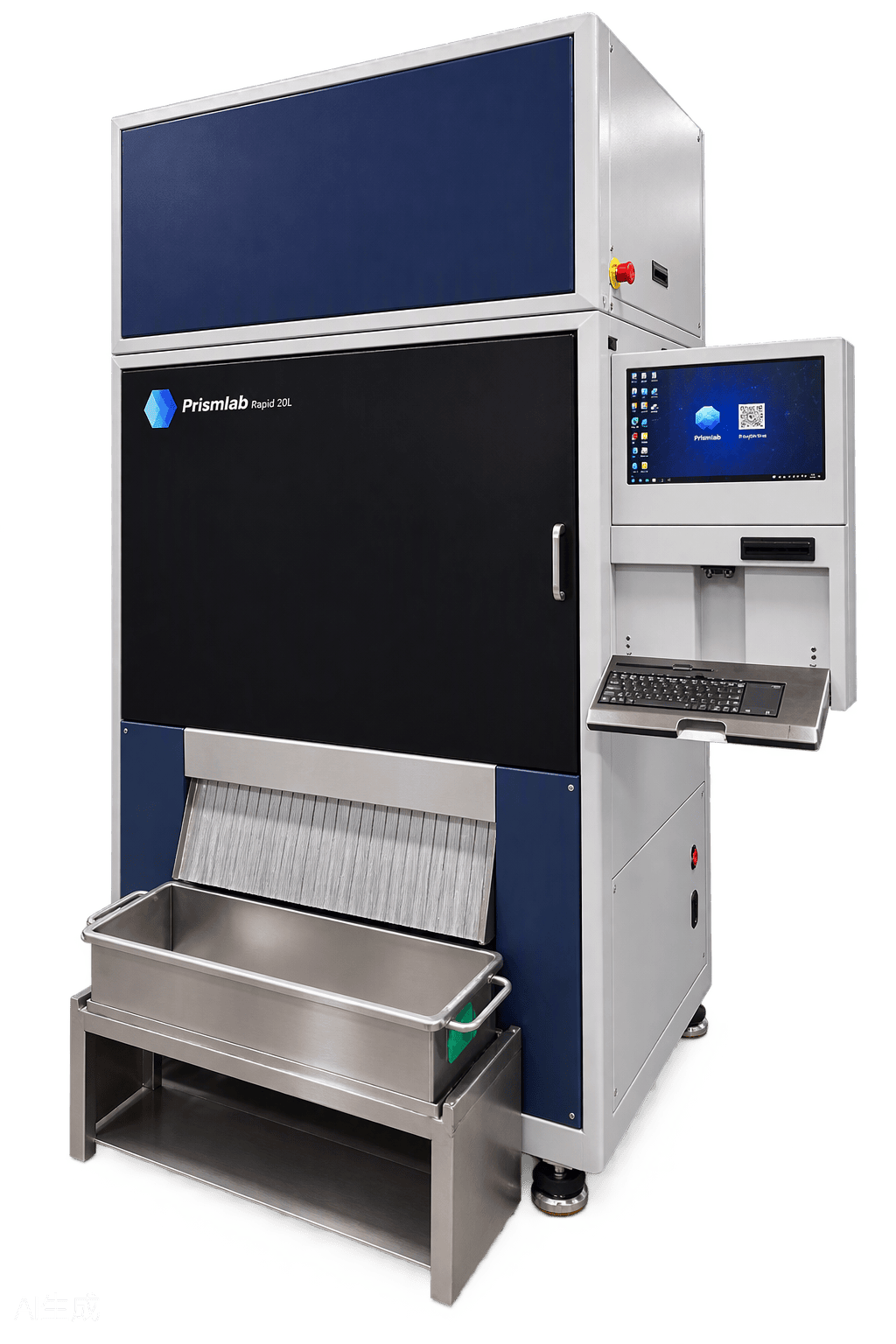

Continuous Batch 3D Printer
Purpose-built for aligner model mass production: exclusive SMS sub-pixel microscanning accuracy, up to 65 models per batch, and true 24-hour continuous printing with automatic data arrangement, resin refill and model collection — no labor involved.

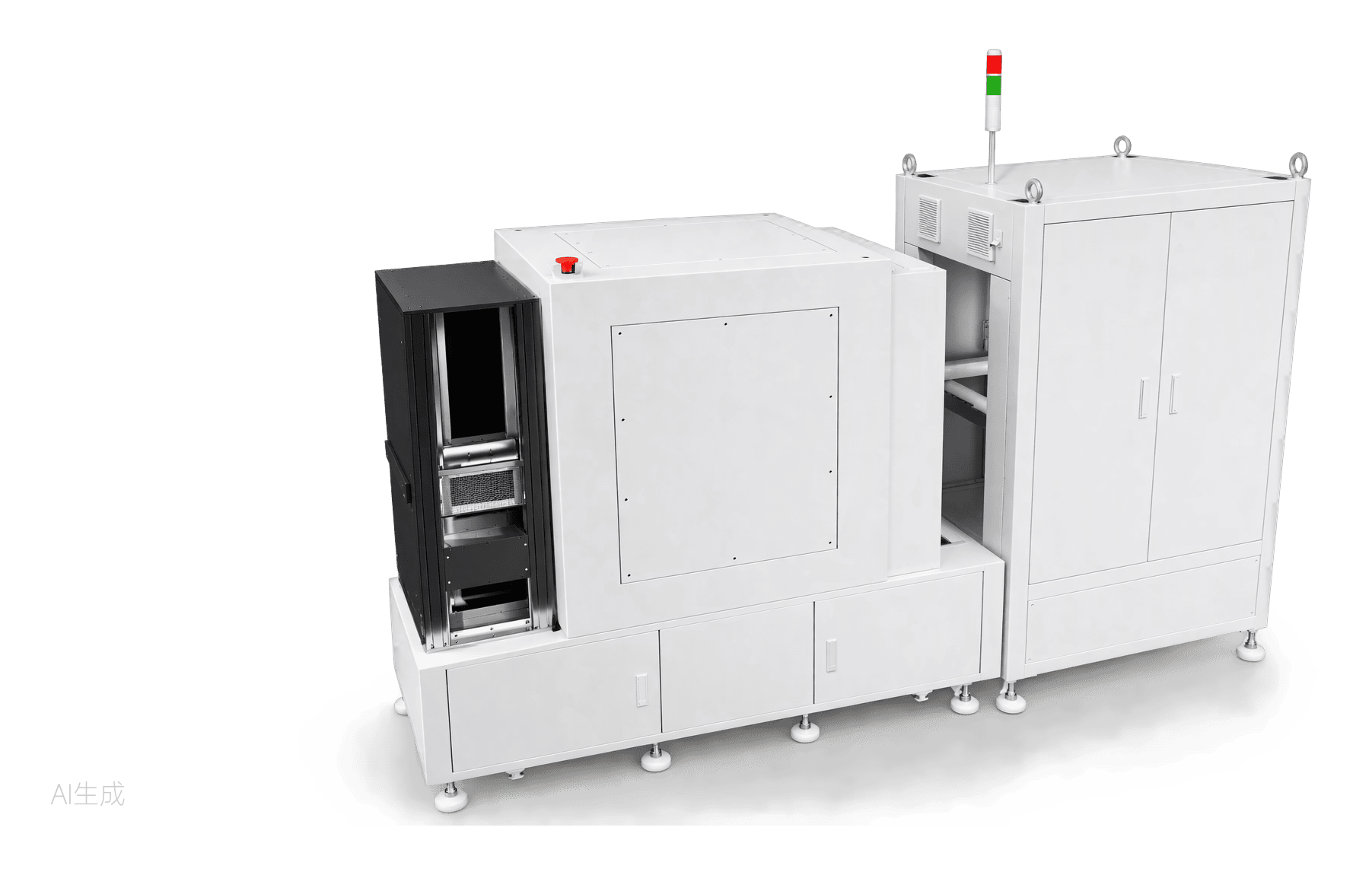

Automatic Washing-free Post-processing Line
No washing, no alcohol, no consumables: the PL-A08 shake-dries and UV-cures models in about 20 minutes — cutting post-processing time by over 70% and moving overnight prints straight into morning production.

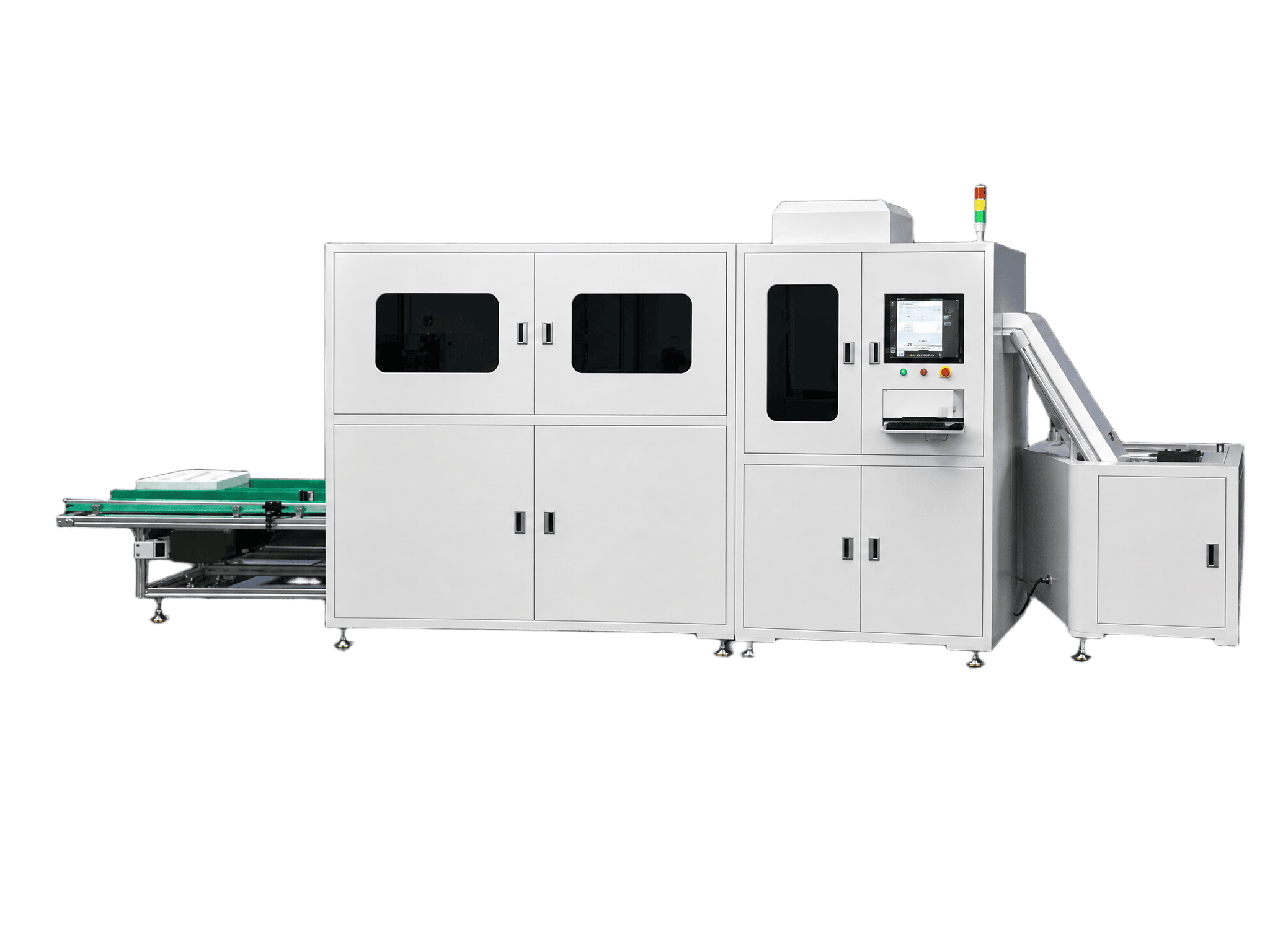

Automatic Model Sorting Machine
Intelligent sorting with zero waiting: vision positioning and robotic pick-and-place distribute models into up to 50 patient orders in parallel, at one model every 6 seconds and a sorting accuracy above 99.9%.

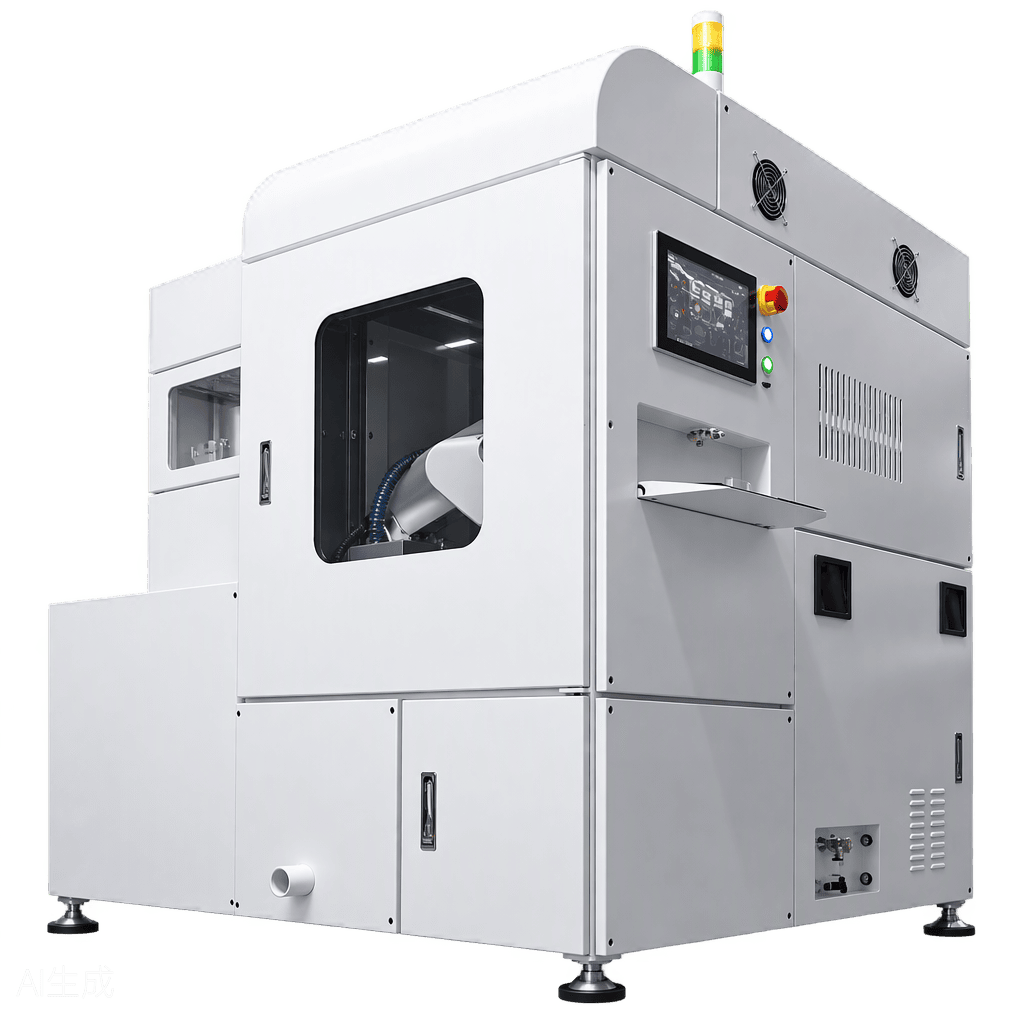

Thermoforming & Automated Trimming
Load the models and film — the ACTA-E does the rest: automatic handling, thermoforming, code reading and laser marking, then precision trimming with mechanical or laser cutters and automatic collection.

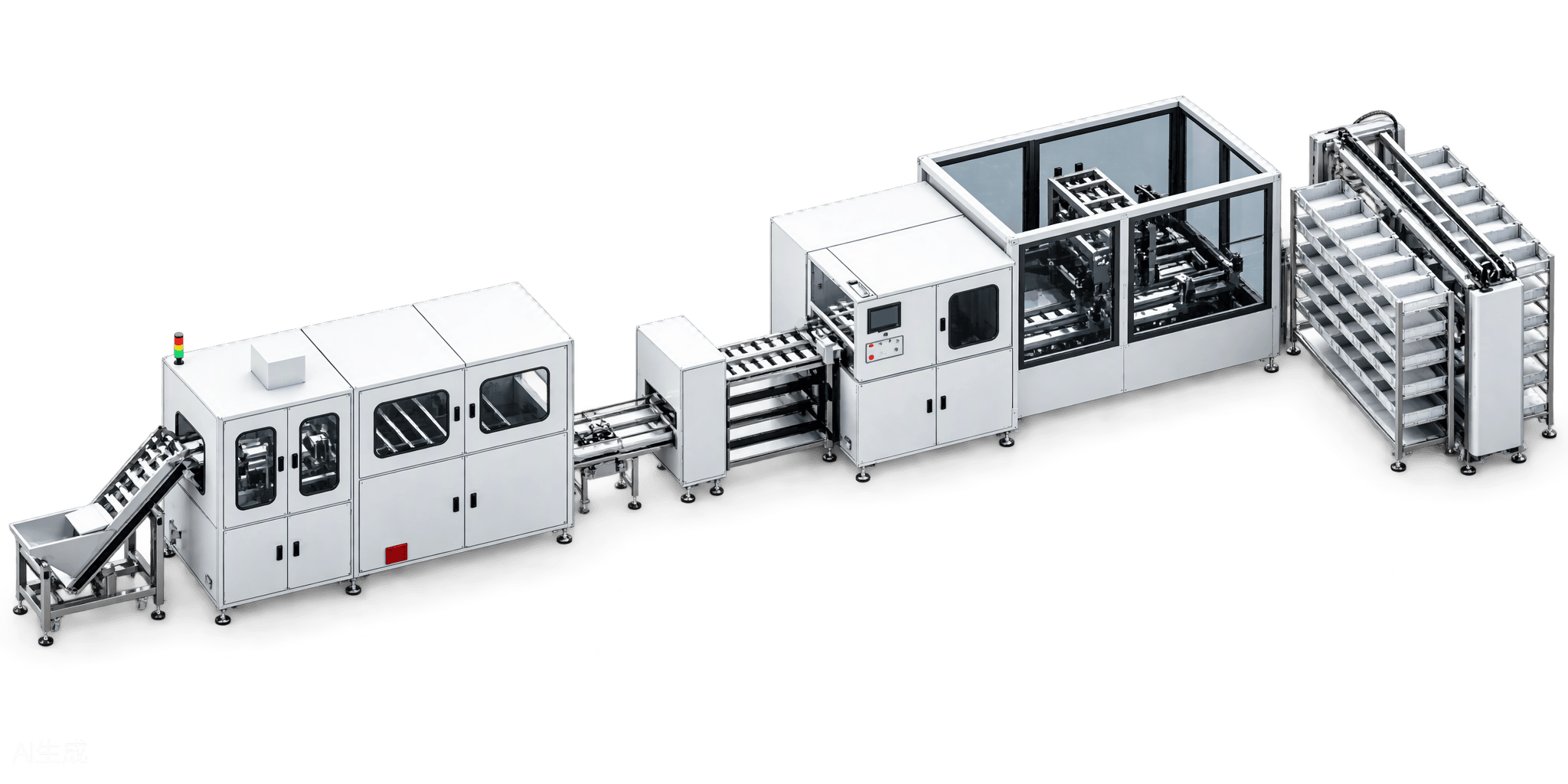

Automatic Aligner Sorting & Packing Machine
The final step of the aligner factory: finished aligners are sorted by treatment stage and packed automatically — up to 7,200 aligners per day and 50 sub-orders processed simultaneously.
Configurations
Two proven aligner production lines — pick the capacity that fits today and scale up when demand grows.
3D Printing
RP-600D
Post-processing
PL-A08
Thermoform & Trim
ACTA-E
Polish
Polishing
Package
ACS-02
3D Printing

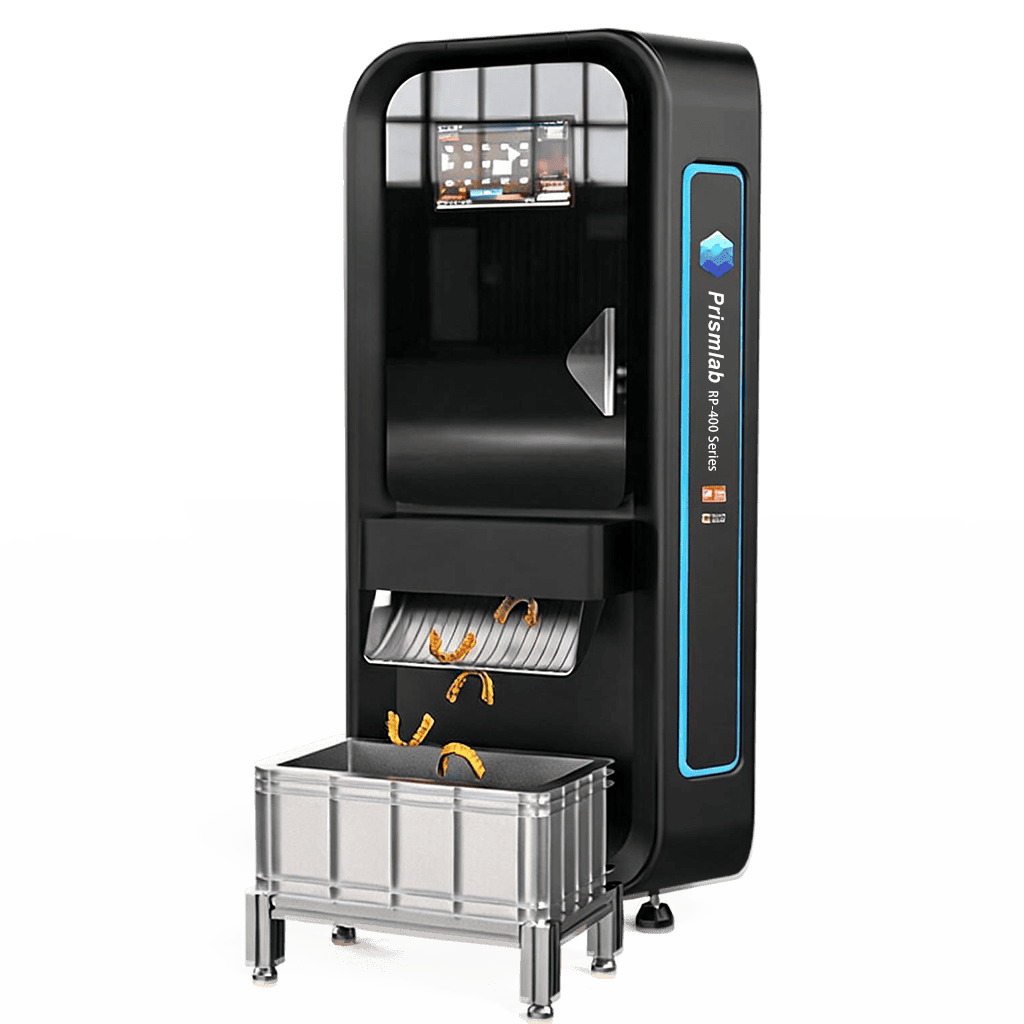

RP-400D
Post-processing

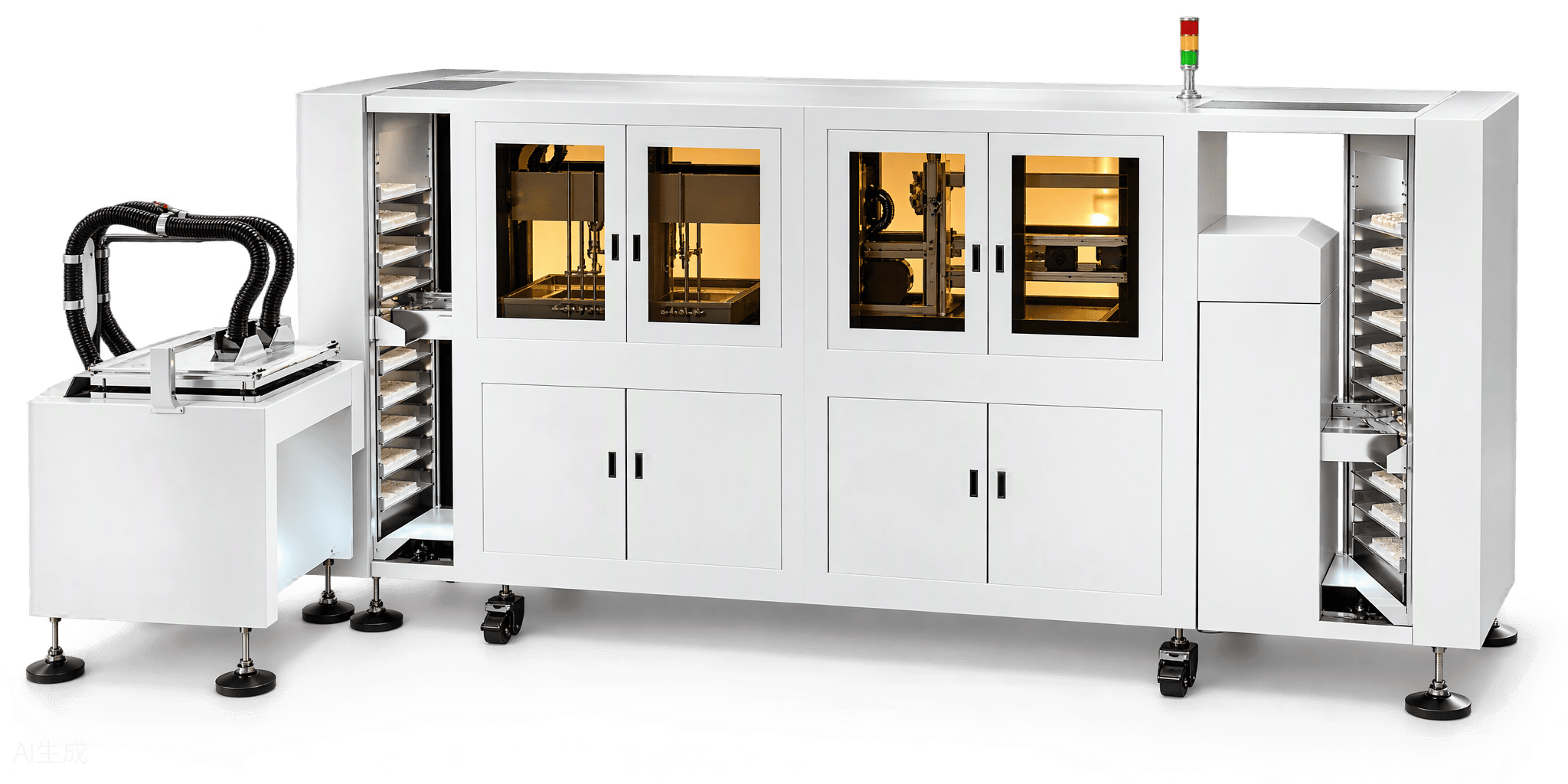

PL-A07
Thermoform & Trim
ACTA-E
Polish
Polishing
Sorting
ACS-01
From a single oral scan to packed aligners — we'll configure the software, printers and automation cells around your production targets.
