Batch Printing Solution for Implant Dental Models.

View Products

Workflow

Scan to surgery in four steps

A fully digital thread from CBCT planning to the finished guide — traceable, repeatable, and running unattended day and night.

  1. Design step illustration

    Step 01

    Design

    Merge CBCT and intraoral scans, plan the implant position and design the guide, crown or tray in CAD — then auto-nest the batch.

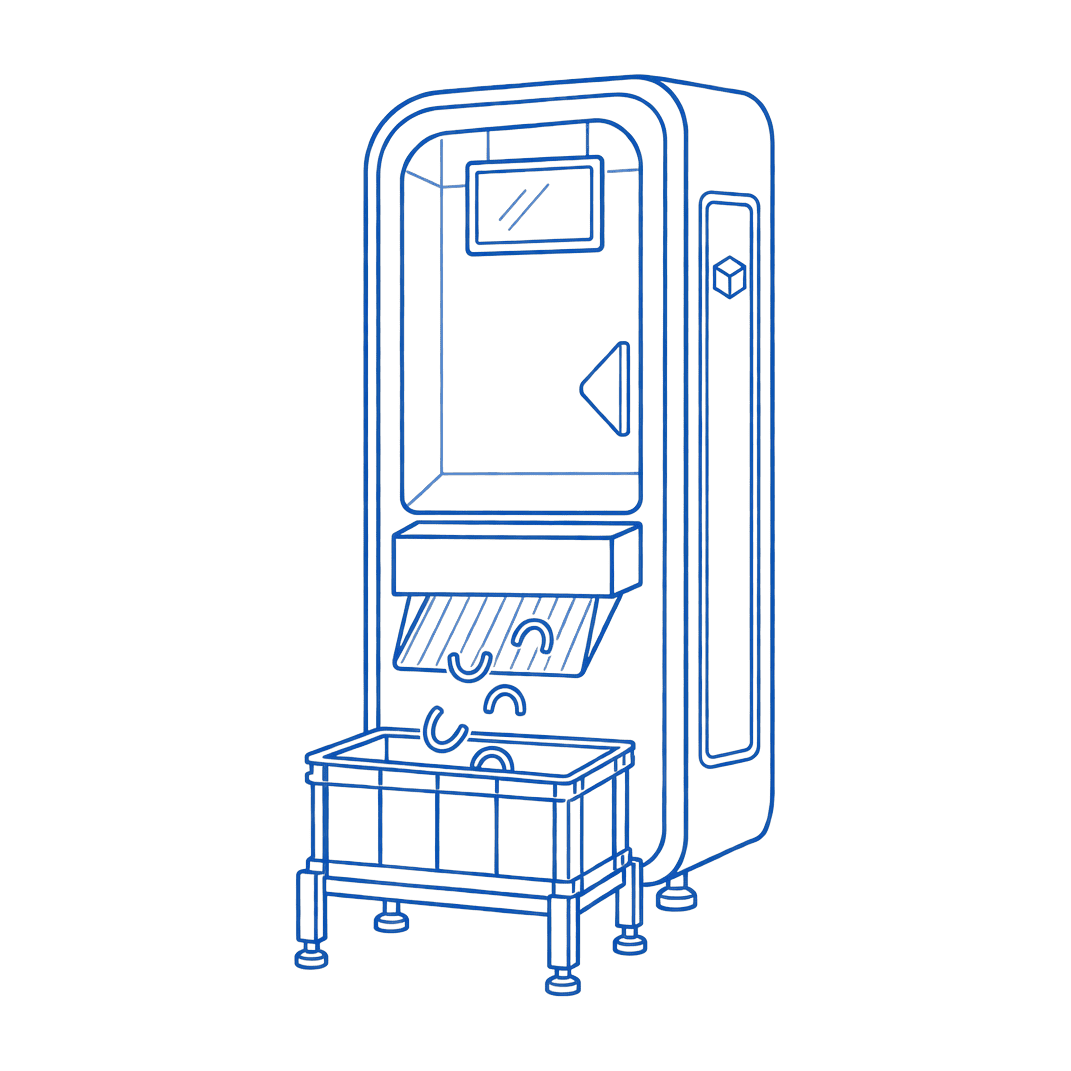

  2. RP-400D 3D printer line illustration

    Step 02

    3D Print

    The RP-400D prints batch after batch with automatic feeding and demolding — true 7×24 unattended production.

  3. Post-process step illustration

    Step 03

    Post-Process

    The PL-A07 line washes, dries and UV-cures every model automatically — alcohol-free, up to 8 plates per hour.

  4. Deliver step illustration

    Step 04

    Deliver

    Sterilize and deliver guides for surgery, or send models and temporaries straight to the restorative workflow.

Inside the automated post-processing line PL-A07

From build plate to cured model — untouched by hand.

  1. 01 · Collection & rough wash

    Printed models are secured in baskets, then circulation-pump washed

    ≈ 7.5 min

  2. 02 · Fine wash

    Second bath with 5-minute ultrasonic cleaning for every detail

    ≈ 7.5 min

  3. 03 · Deep water rinse

    Third tank removes any remaining residue — alcohol-free throughout

    ≈ 7.5 min

  4. 04 · High-speed drying

    Air-knife drying prepares models for optimal UV curing

    ≈ 7.5 min

  5. 05 · UV curing

    Uniform ultraviolet exposure locks in strength and durability

    ≈ 16 min

  6. 06 · Unload & quality check

    Finished plates move to the collection tower for final inspection

    ≈ 7.5 min

Applications

Every piece of the implant workflow

Four core implant applications, one digital thread — from guided surgery to the final impression, without plaster, without alcohol.

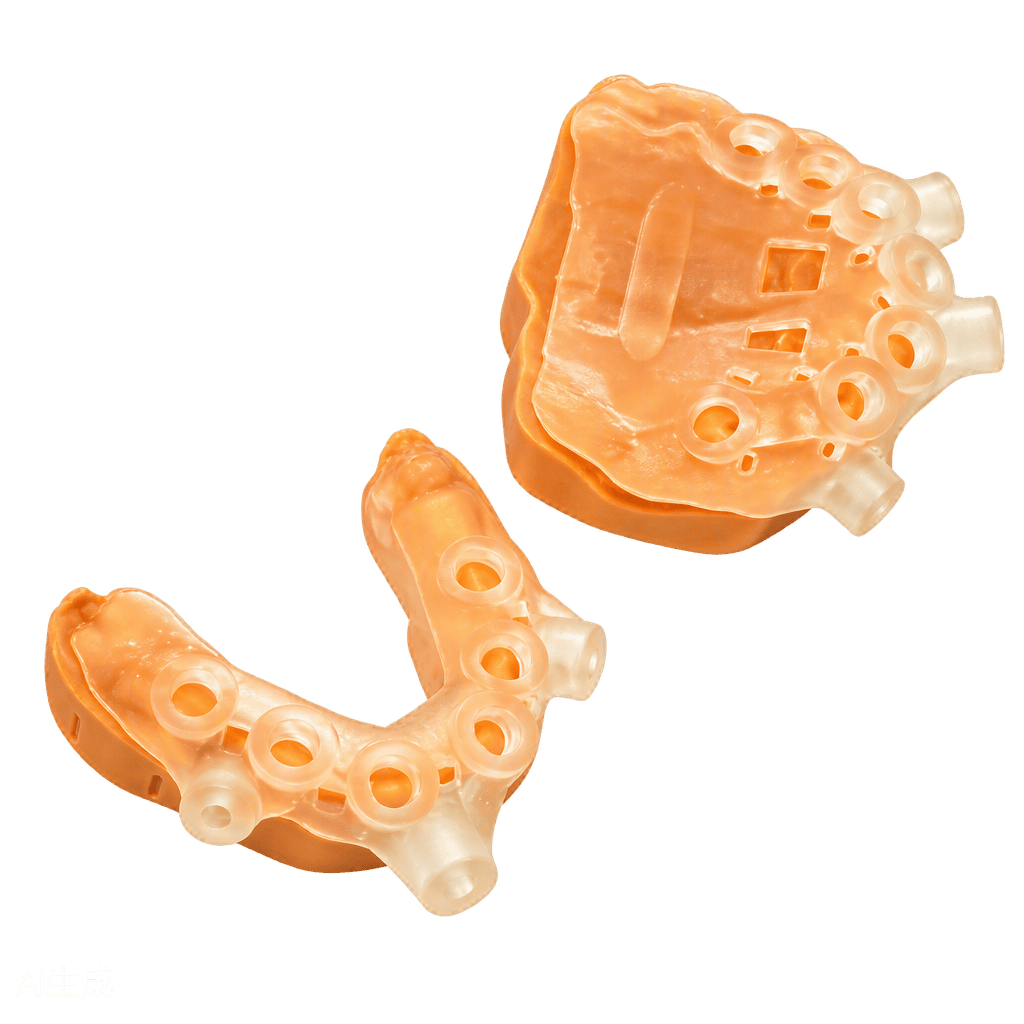

Guide Resin 3D printed implant surgical guides

Surgical Guide

Translucent guides that transfer the digital plan to the surgical site — accurate seating, sleeves and drilling depth, case after case.

  • ±33 μm accuracy for precise implant positioning
  • Tooth-, mucosa- and bone-supported designs
  • Same-day turnaround from plan to surgery

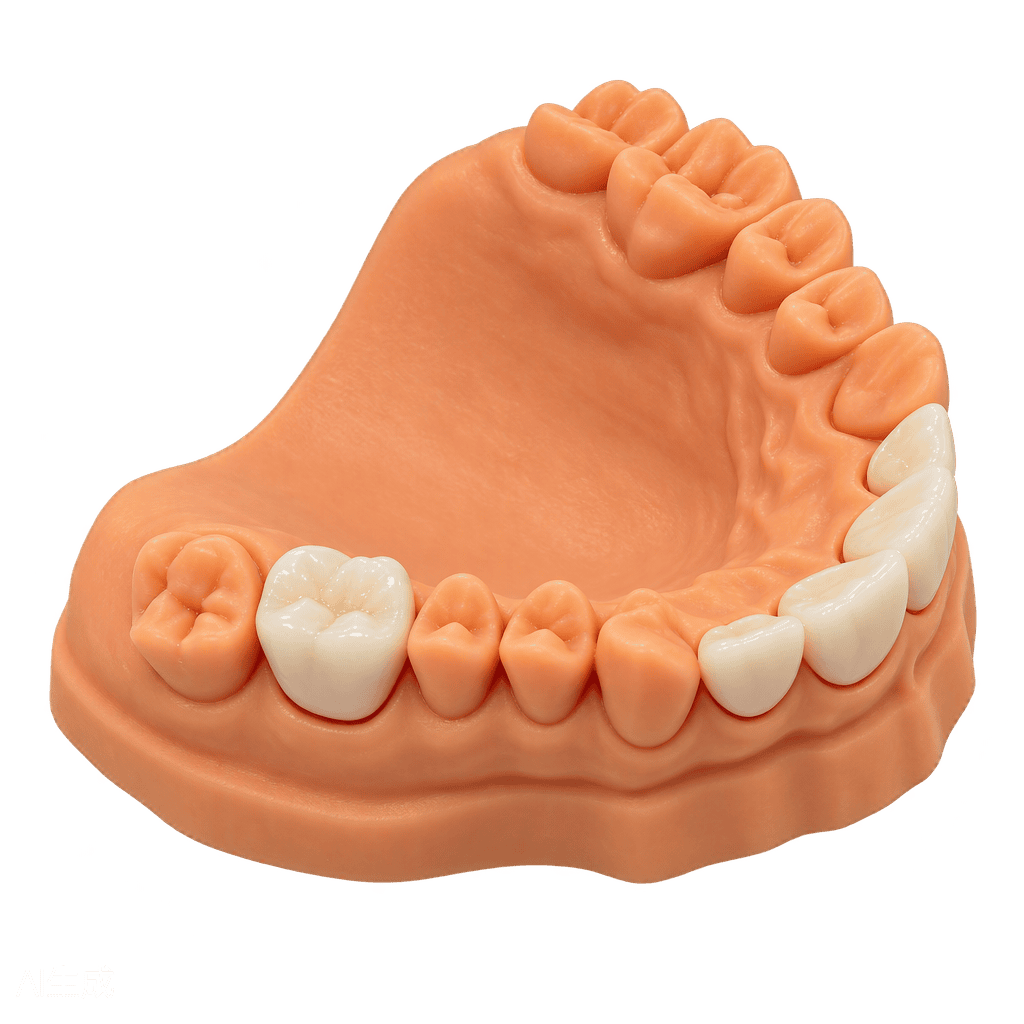

Crown Resin 3D printed temporary crowns on a dental model

Temporary Crown

Esthetic provisionals printed with natural shade and fine marginal fit — delivered while the definitive restoration is in production.

  • Fine margins resolved at 5760 × 3240 resolution
  • Tooth-shaded resin with smooth surface finish
  • Immediate temporization for implant cases

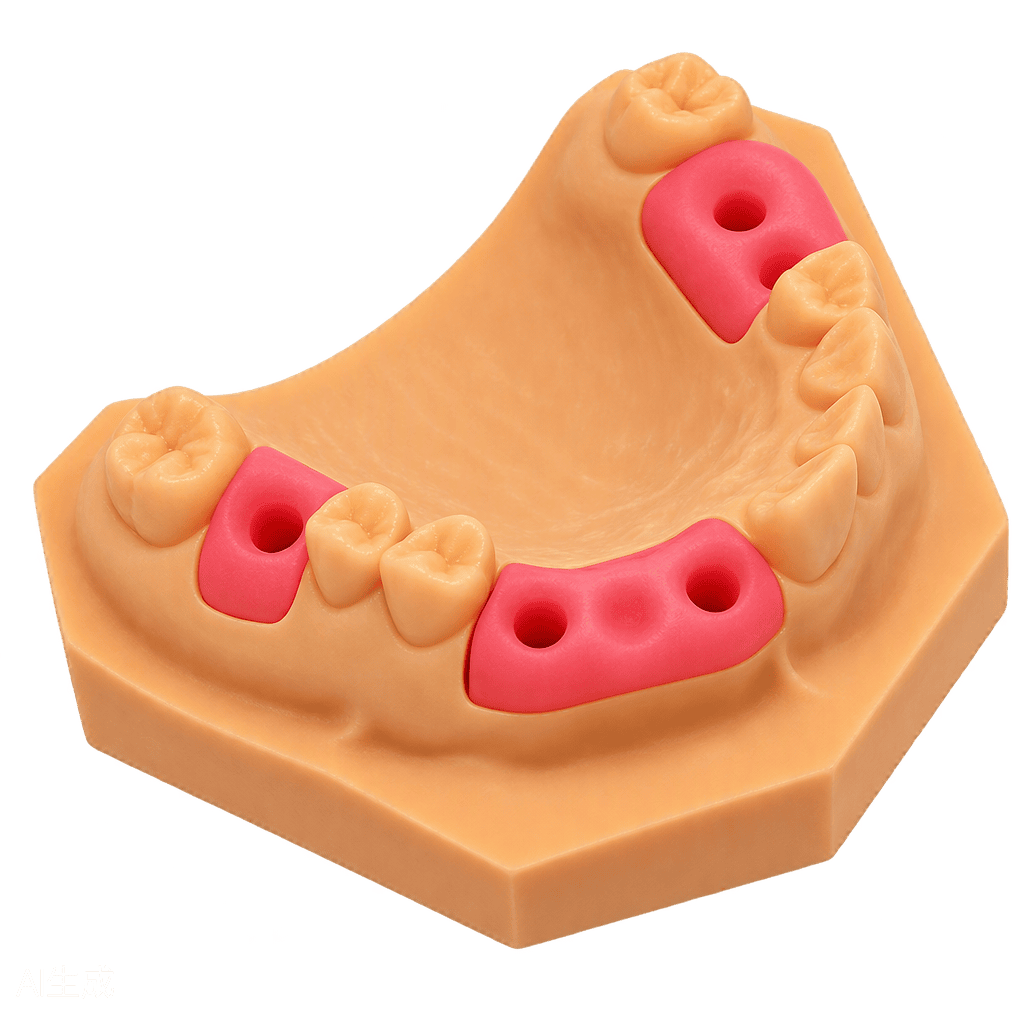

Model Resin 3D printed implant model with removable gingiva masks

Implant Model

Working models with removable soft gingiva masks and precise analog seating — the backbone of accurate lab fabrication.

  • Up to 480 half-arch models per 24 hours
  • 99% print success — no plate-dropping overnight
  • Consistent analog fit straight off the line

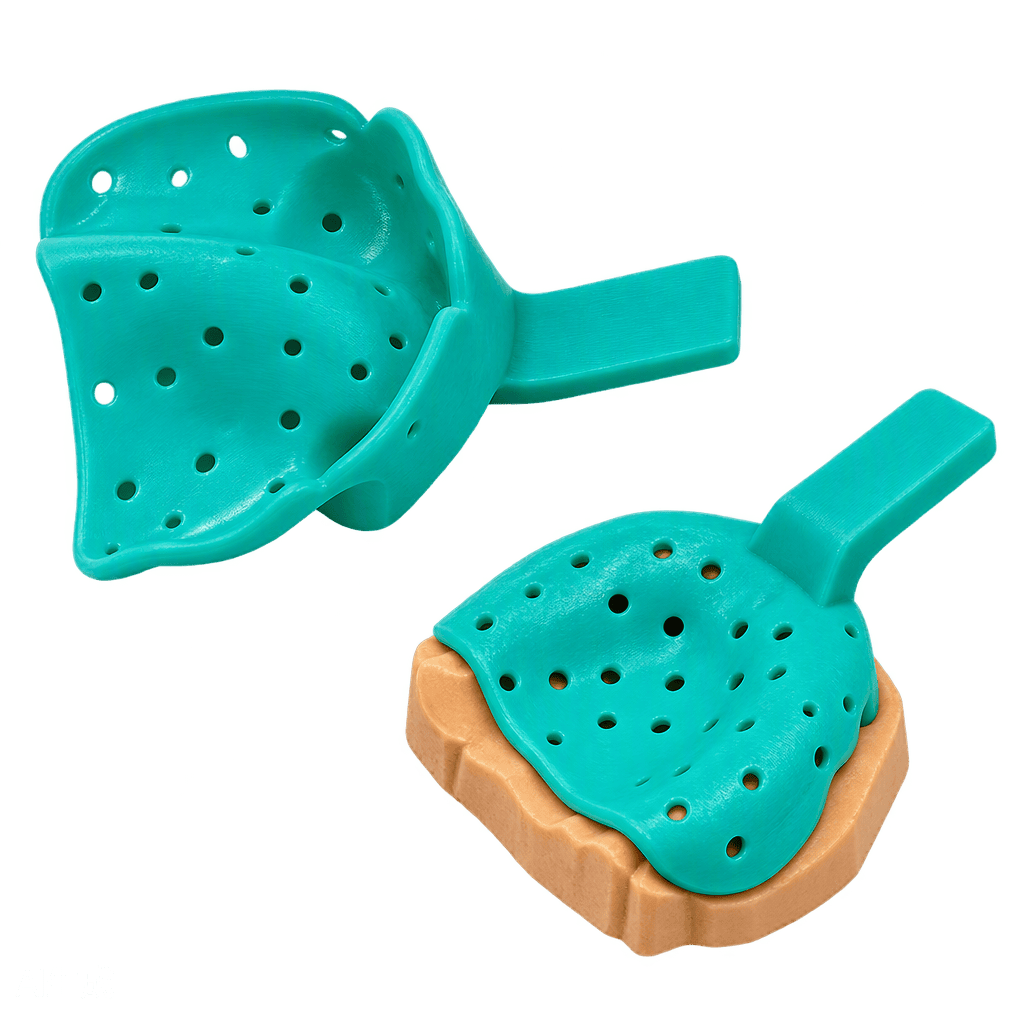

Tray Resin 3D printed custom impression trays

Custom Tray

Perforated custom impression trays designed to the patient's arch — uniform material thickness for accurate implant impressions.

  • Uniform spacing for impression material
  • Rigid prints that resist flex during seating
  • No hand fabrication, no duplicated models
One platform · full-scene dental applications Surgical Guide Implant Model Temporary Crown Custom Tray Restoration Model Denture Base Wax Pattern Orthodontic Model

Equipment

The implant production cell

A 7×24 batch printer paired with a fully automated alcohol-free finishing line — industrial throughput for personalized implant dentistry.

Prismlab RP-400D industrial batch 3D printer
Industrial · 7×24 Batch Production

RP-400D

Continuous Batch 3D Printing Platform

The RP-400D runs unattended around the clock: automatic feeding and demolding, zero vat consumables and sub-pixel micro-scanning accuracy — solving personalized implant production with industrial means.

7×24 continuous production Auto feeding & demolding Zero vat consumables 99% print success rate
Prismlab PL-A07 automated post-processing workstation
Post-processing · Alcohol-free Automation

PL-A07

Automated Post-processing Workstation

One line replaces the entire finishing bench: washing, rinsing, drying and UV curing in a single automated flow. Alcohol-free cleaning keeps operators safe — and one PL-A07 keeps pace with up to twenty printers.

Fully automatic 6-stage flow Alcohol-free cleaning Serves up to 20 printers Compact 3.8 m² footprint

Specifications

Compare the line-up

Parameter RP-400DBatch 3D Printer PL-A07Post-processing Line
Role 7×24 batch implant production Automated wash · dry · cure line
Resolution / Accuracy 5760 × 3240 · ±33 μm (SMS) —
Build volume / Capacity 384 × 216 × 80 mm 15 half-arch models / plate · 3 tanks
Throughput Up to 480 half-arch models / 24 h 8 plates / hour
Automation Auto feeding · auto demolding · zero vat consumables 6-stage flow · serves up to 20 printers
Cleaning solution — Alcohol-free · ultrasonic + water rinse
Dimensions 910 × 1110 × 1770 mm 4050 × 930 × 1800 mm
Weight / Power 309 kg 220 V · 6.6 kW
Highlights 99% success · STL/SLC input · BASF-grade resins 3.8 m² footprint · ≤ 81 dB

Specifications subject to the physical device; product images are for reference only.

Scale your implant production.

Tell us about your lab or clinic — we'll configure the RP-400D and PL-A07 around your implant workflow, volumes and materials.
